Physical Characteristics

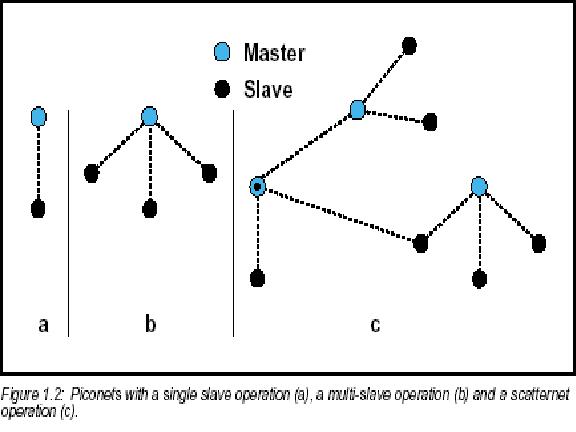

Two or more Bluetooth devices using the same channel form a piconet. There is one master and one or more slave(s) in each piconet. There is a unique hopping sequence for the piconet and it is determined by the Bluetooth device address of the master. While the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. The channel is divided into time slots, each 625 us in length. The time slots are numbered according to the Bluetooth clock of the piconet master.

A TDD (time-division duplex) scheme is used where master and slave alternatively transmit. The master shall start its transmission in even-numbered time slots only, and the slave shall start its transmission in odd-numbered time slots only. The packet start shall be aligned with the slot start.

The Baseband handles two types of links : SCO (Synchronous Connection-Oriented) and ACL (Asynchronous Connection-Less) link. The SCO link is a symmetric point-to-point link between a master and a single slave in the piconet. The master maintains the SCO link by using reserved slots at regular intervals (circuit switched type). The SCO link mainly carries voice information. The master can support up to three simultaneous SCO links while slaves can support two or three SCO links. SCO packets are never retransmitted. SCO packets are used for 64 kB/s speech transmission.

The ACL link is a point-to-multipoint link between the master and all the slaves participating on the piconet. In the slots not reserved for the SCO links, the master can establish an ACL link on a per-slot basis to any slave, including the slave already engaged in an SCO link (packet switched type). Only a single ACL link can exist. For most ACL packets, and packet retransmission is applied.
